GaeaChunkLoader

GaeaChunkLoader is a scene node that divides the world into chunks and generates them on demand around a moving actor (typically the player). It is designed for open-world or infinite worlds where the full map cannot be generated all at once.

How It Works

The chunk loader polls the actor's position at a regular interval. When the actor moves into a new chunk, the loader:

1. Calculates which chunks fall within the loading_radius around the actor.
2. Requests generation for any chunk not yet loaded.
3. Optionally erases chunks that are no longer in range (if unload_chunks is enabled).

Chunks are defined by their chunk_size and identified by their integer position in chunk space.

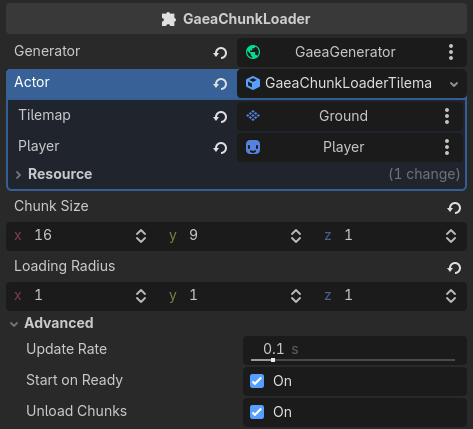

Properties

Property	Type	Default	Description
generator	GaeaGenerator	—	The generator node used to generate and erase chunk areas.
actor	GaeaChunkLoaderActor	—	Resource that provides the actor's position in chunk space.
chunk_size	Vector3i	(16, 16, 1)	Size of each chunk in world units.
loading_radius	Vector3i	(2, 2, 1)	How many chunks to load in each direction around the actor.
update_rate	float	0.1	Interval in seconds between position checks. 0.0 checks every frame.
start_on_ready	bool	true	If true, starts loading automatically when the node enters the scene tree.
unload_chunks	bool	true	If true, erases chunks that leave the loading radius.

Methods

Method	Description
start()	Starts the loading loop. Called automatically on ready if start_on_ready is true.
stop()	Stops the loading loop.

Actors

Actors are small resources that tell the chunk loader where the tracked entity is.

The actor resource must match the type of renderer you're using. For example, if you're using a TileMapGaeaRenderer, use a GaeaChunkLoaderTilemapActor and assign the target TileMapLayer. If you're using a GridMapGaeaRenderer, use a GaeaChunkLoaderGridmapActor and assign the target GridMap.

Two built-in actors are provided:

GaeaChunkLoaderTilemapActor

Used for 2D games with a TileMapLayer renderer.

Property	Type	Description
tilemap	NodePath	Path to the TileMapLayer node.
player	NodePath	Path to the Node2D actor to track.

The actor converts the player's 2D map position into chunk coordinates automatically.

GaeaChunkLoaderGridmapActor

Used for 3D games with a GridMap renderer.

Property	Type	Description
gridmap	NodePath	Path to the GridMap node.
player	NodePath	Path to the Node3D actor to track.

The actor converts the player's 3D map position into chunk coordinates automatically.

Custom Actors

You can create your own actor by extending GaeaChunkLoaderActor and implementing two methods:

• get_actor_chunk_position(chunk_loader, chunk_size) -> Vector3i — returns the current chunk position of the actor.
• is_actor_valid(chunk_loader) -> bool — validates that required nodes are present.

Setup

1. Add a GaeaChunkLoader node to your scene.
2. Assign your GaeaGenerator node to the generator property.
3. Create a GaeaChunkLoaderTilemapActor or GaeaChunkLoaderGridmapActor resource and assign it to actor.
4. Set chunk_size and loading_radius to match your game's scale.
5. Run the scene. The loader starts automatically and generates chunks as the player moves.
